Description
Features
- Pin moisture measurement with built-in calibration check
- Improved non-invasive moisture measurement with sensitivity mode feature and simple field calibration
- Non-contact surface temperature measurement with Infrared (IR) laser pointer
- Fast Response
- Manual and automatic data logging up to 10,000 records
- File viewer mode to view logged data
- Data reporting and processing through Protimeter PC software
- Live data stream over Bluetooth, data log into file or embedded into an image in Protimeter app
- Web interface to view the logged data
- Easy-to-use interface with colour display and multi-language capability
- Firmware upgradable
Benefits
- Fast responding hygrometer speeds up building surveys
- Replaceable humidity and temperature sensor
- No need to plug in multiple accessories
- Non-invasive measurement not adversely affected by surface moisture
- Highly accurate
Applications
When concise and accurate environmental readings need to be reported, the MMS3 gets the job done. The ability to record readings instantly at the push of a button makes this instrument ideal for many applications including:
- Fire and flood restoration
- Concrete floor moisture measurement
- Home inspection
- Building survey
- Moisture mapping
Included with the Protimeter MMS3 (BLD9800S)

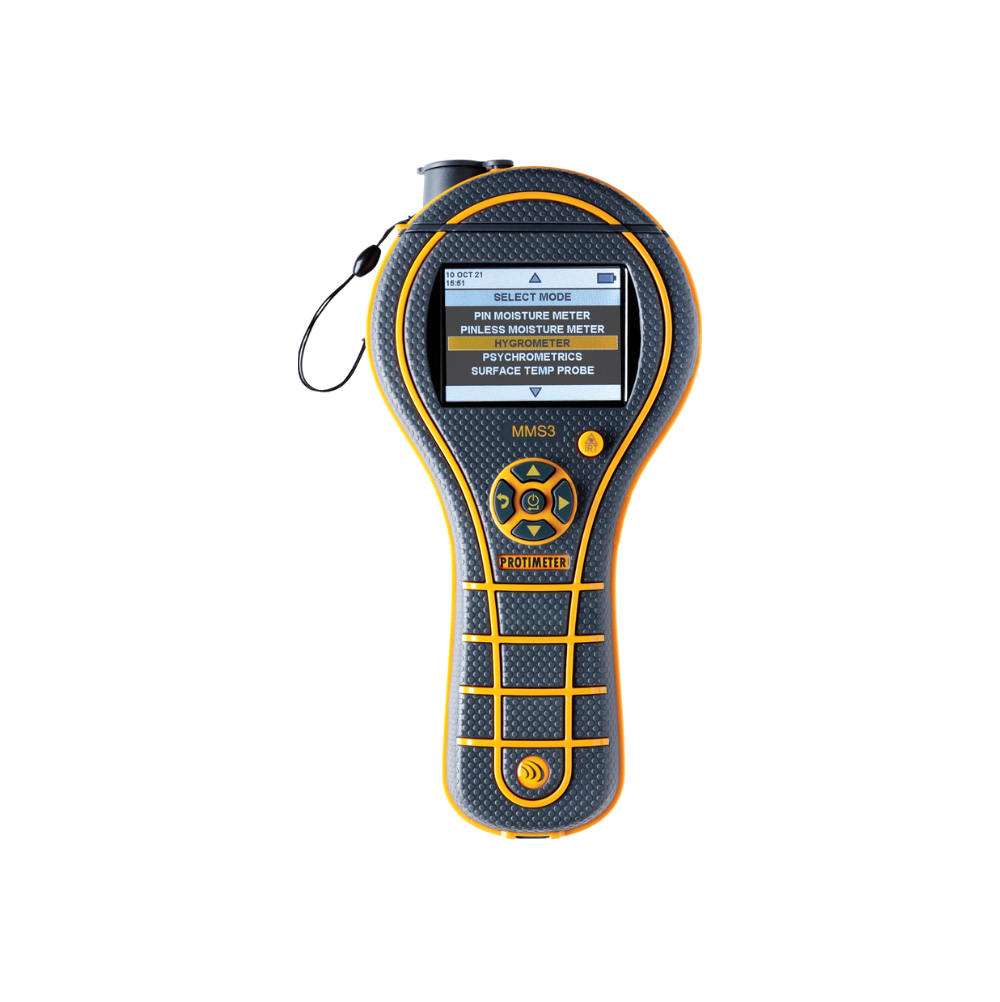

- The Protimeter MMS3
- Quikstick ST (POL8751)
- HD MC Probe (BLD5060)
- Hygrostick (POL4750)
- Hygro/Quik Ext Lead (BLD5802)
- 5″ Deep Wall Probes 127mm (BLD5018)
- Quick Start Guide (711-194)
- Preformed Case (441-1025)
- 2xAA Alkaline Batteries ~ 2700mAH
Specifications
| Gross Weight | Instrument only with batteries 10.9 oz (309 g) |
| Regulatory Compliance | CE RoHS ETL UKCA |
| Plug-In Surface Temperature Probe | (BLD5806) Range: 32°F to 158°F (0°C to 70°C) Accuracy: ±1.3°F (±0.7 °C) @ 77 °F (±25° C) |
| Display | 2.4″ TFT Color LCD 320×240 Resolution Blacklight with adjustable brightness Outdoor Mode |
| Batteries (Included) | 2xAA Alkaline Batteries ~ 2700mAH |
| Warranty | Standard Limited Warranty for 24 months on mechanical or manufacturing defects. Does not include wearing part or accessories., which have a 12 month warranty for normal use. |
| Moisture Measurement Range | Pin (% WME): 6% to 100% (Readings over 30% are relative.) Non-Invasive (RF): 60 to 999 Relative, up to 3/4″ (19mm) deep in standard mode and up to 5″ (12cm) deep in sensitivity mode (varies with material under test.) |
| IR Surface Temperature Probe Range | LASER Pointer: 12:1 (D:S) Ratio Range: -4°F to 176°F (-20°C to 80°C) Accuracy ±3.6°F (±2°C) |
| Hygrostick Data (Nominal) | 30% t 40% RH (±3% RH) at 68°F (20°C) 41% to 98% RH (±2%) at 68°F (20°C). Range 32°F to 122°F (0°C to 50°C) ±0.6°F (±0.3°C) |
| Data Storage | Manual and Automatic Logging: Store up to 10,000 results in the device with date and timestamp from all instrument functions. Store results of interest in cloud from live data on the Protimeter app into a file or embed into an image to be accessed through phone/tablet and/or web interface. |
